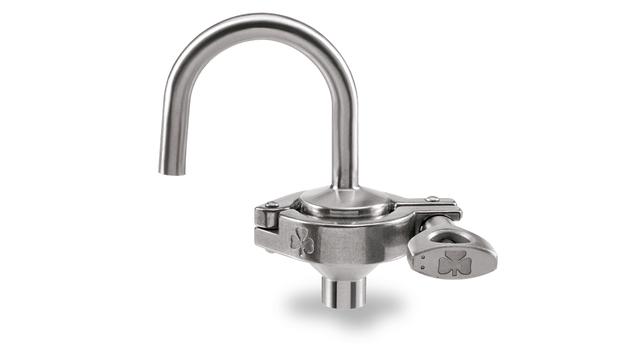

LKUV-2 Air-relief Valve

The Alfa Laval LKUV-2 is a reliable, self-acting air relief valve that releases excess air from process pipelines, or pumps to prevent cavitation and product loss, thereby preventing the negative effects of air entrainment. Vertically installed, it is ideal for use where the removal of air is required to maintain design pressure conditions, such as at the top of a pipeline, or pump inlet pipe on the suction side to remove excess air before starting the pump.

Air-relief valves designed for solid safety, efficiency and low cost of ownership

Improved processing efficiency and product integrity
Enhanced energy efficiency
Protects pumps against the risk of cavitation
Low total cost of ownership

This self-acting relief valve is designed for air-venting duties in hygienic applications across the dairy, food, beverage and many other industries. It is typically used in Cleaning-in-Place return line (CIP-R) applications.

Reliable air relief valve

Alfa Laval LKUV-2 air-relief valves are automatic double-seat valves engineered to relieve excess air in industrial processing lines, thus preventing the negative effects of air entrainment. Vertically installed, LKUV-2 air-relief valves are ideal for use on the top of a pipeline or container or before a pump inlet, where the removal of air is required to maintain design pressure conditions.

Improved processing efficiency

LKUV-2 air-relief valves help improve processing efficiency. By preventing air entrainment, the valves contribute to product integrity, energy efficiency and protection of pipelines and pump stations against the effects of pressure surges and water hammer.

LKUV-2 air-relief valve range

With a sturdy, bright finish stainless steel construction, the standard range of Alfa Laval LKUV-2 air-relief valves is available in various dimensions to meet most requirements. These valves are designed for maximum product pressure of 10 bar and temperatures up to 90°C (194°F).

For more information, please refer to Documentation below.

Product Benefits

Improve processing efficiency
Stainless steel construction
Reliable air relief valve

Як це працює

Construction

The Alfa Laval LKUV-2 air-relief valve consists of an upper valve body, lower valve body with welding stub, seal ring and polypropylene ball. The valve body is assembled by means of a clamp.

Operating principle

These automatic double-seat air-relief valves have a lightweight, freely moving polypropylene ball that closes against the upper or lower seat, depending on pressure conditions.

When air pressure increases, the ball is forced off its seat, allowing excess air pressure to be vented to the atmosphere. When pressure is equalized, the ball is reseated on the lower valve seat, thus closing the valve.

Options

Seal ring in NBR (Buna N) or FPM (SFY)

Part of a broad valve range

Alfa Laval offers a comprehensive range of valves intended for hygienic applications in the dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals.

For a broader valve range, explorer the different product categories: ball valves, butterfly valves, diaphragm valves, double seal valves, double seat valves, regulating valves, safety valves, sample valves, shutter valves and single seat valves.
