PureBallast 3

Alfa Laval PureBallast 3 is an automated inline ballast water management system for biological disinfection of ballast water. Operating without chemicals, it combines initial filtration with UV treatment to remove organisms in accordance with stipulated limits.

PureBallast 3 Ultra

Get total solutions in ballast water management

  • Superior performance in any waters – and challenging conditions
  • Minimized power consumption
  • Easy installation with minimized footprint
  • Delivered Connectivity-ready
  • Designed and supported for the whole vessel lifetime

PureBallast 3 treats ballast water without chemicals, combining high-performance filtration with enhanced UV treatment. In the UV reactor(s), specially designed synthetic quartz lamp sleeves transmit an extended wavelength spectrum that provides more UV light. Together with the internal reactor design, this ensures optimal UV dosage with very low energy consumption. An expanded range of reactor sizes further reduces power needs in specific configurations.

.
PureBallast3 Ultra new

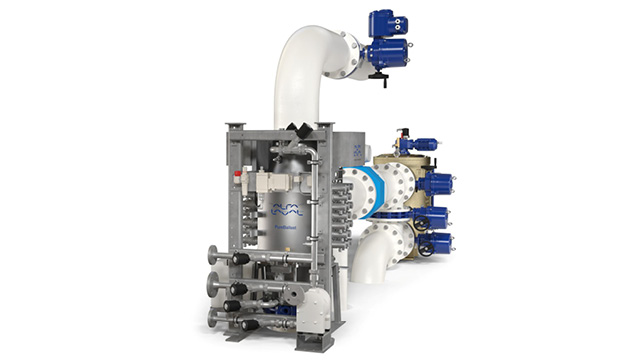

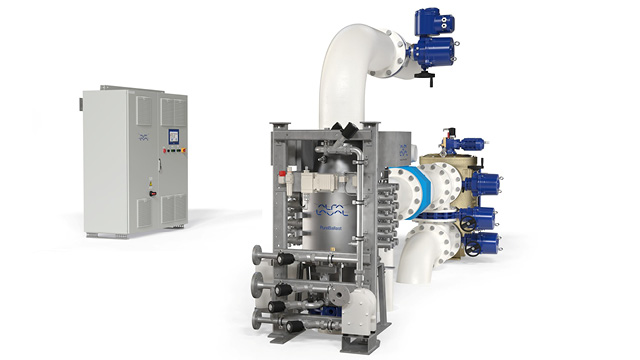

PureBallast 3 Ultra

PureBallast 3 Ultra offers unmatched biological disinfection performance in any type of water: fresh, brackish or marine. An expanded range of UV reactor sizes ensures a close match between PureBallast 3 Ultra and the ballast pump capacity. For certain flows, this reduces power needs by up to 19% over previous systems. System layout is simplified by the smaller design of the upgraded filter, as well by the integration of the Cleaning-In-Place (CIP) unit and pressure monitoring device into the UV reactor module.

PureBallast 3 Ultra is available for delivery from Q3, 2025

Ballast water flows of 42–3000 m3/h

Option: ATEX and IECEX. Zone 1, IIC and T4 with power supply placed in safe zone)


Download the leaflet

.

Our portfolio for deliveries before Q3, 2025

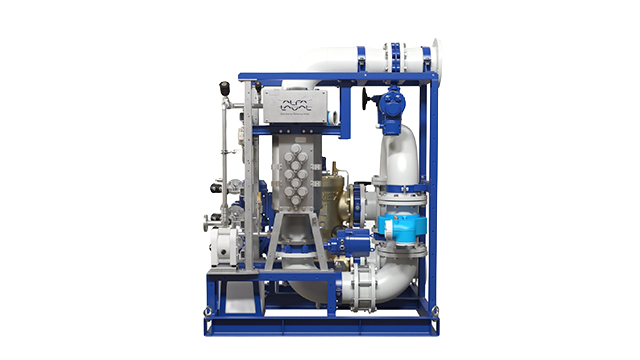

pureballast_compact_system640x360.jpgPureBallast 3 Compact

is a skid-mounted solution for smaller ballast water flows. Installation is easy due to the small footprint and minimized pipework.

Ballast flow 32-300 m3/h

  • Skid-mounted, plug-and-play module
  • Flexible placed electrical cabinet



Download Product Leaflet

PureBallast 3 Compact Flex

is the ideal choice for most vessels. Delivered as loose components, it maximizes space savings and installation flexibility

Ballast flow 32-1000 m3/h

  • Complete installation freedom
  • Minimized system footprint





Download Product leaflet

Alfa Laval PureBallast 3.jpgPureBallast 3 Std

Provides widest range of reactor configurations and technical opportunities on vessels with non-hazardous environments.

Ballast flow 500-3000 m3/h

  • Maximum range of operation and component placement
  • Up to 6000 m3/h with dual system





Download Product Leaflet

Alfa Laval PureBallast 3.jpgPureBallast 3 Ex

gives vessels with explosive environments redundant safety features and high flexibility. The power supply can be placed outside the hazardous zone.

Ballast flow 250-3000 m3/h

  • ATEX and IECEX. Zone 1, IIC and T4
  • Up to 6000 m3/h with dual system



Download Product Leaflet


Class certifications

Both standard and Ex versions of PureBallast have been certified by the major classification societies:​

  • American Bureau of Shipping (ABS)
  • Bureau Veritas (BV)
  • China Classification Society (CCS)
  • Korean Register of Shipping (KR)
  • Lloyd’s Register (LR)
  • Polish Register of Shipping (PRS)
  • Registro Italiano Navale (RINA)
  • Russian Maritime Register of Shipping (RMRS)
  • Vietnam Register (VR)

* PureBallast 3 Ultra uses the same treatment technology as type-approved PureBallast 3 systems. Updated type approvals are in progress due to the new configurations.


Introducing the PureBallast 3 Ultra

Watch the video to discover the benefits of PureBallast 3 Ultra.

Clear benefits for UV performance with Cleaning-in-Place

UV ballast water management systems are chemical-free and pose no risk to the ballast water tanks. However, they depend on regular cleaning to remove seawater scaling and fouling from the UV lamp sleeves and sensors. In PureBallast 3, cleaning is done through gentle, automated Cleaning-In-Place (CIP).
